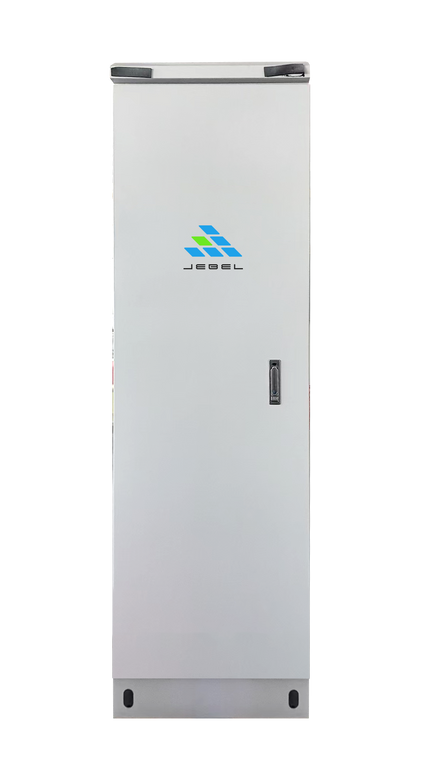

JEBEL 96KWH High Voltage Cabinet Battery System
JebelLog in for pricing
Write a Review
Jebel
JEBEL 96KWH High Voltage Cabinet Battery System
JEBEL 96KWH High Voltage Cabinet Battery System
Key Features
-
Scalable Design
-
High Capacity
-
APP Monitoring
-
Safe & Reliable
-
Long Service Life
-
Technical Support
Technical Specifications
| Model | JBL-B-PC-96 |
|---|---|
| Cabinet capacity(wh) | 96000 |
| Number of cells | 1P16S*6 |
| Cell Type |
LFP |
| Nominal Voltage (V) | 307.2 |
| Operating Voltage Range (V) | 278.4~345.6 |
| Max.Charge /Discharge Current (A) | 160 |
| Continuous Charging/Discharging Current (A) | 155 |
| Max.Power（W） | 49152 |
| Max. charging power (W) | 49152 |
| Dimension (H*W*D mm) | 2185*660*1130 |
| Weight（KG） | About 1010 |
| Operating Temperature Range（℃） | -10~55 |
| Temperature.Control | Automatic heating and cooling adjustment |
| Cooling capacity/Heating capacity(W) | 1500/1000 |
| Cooling/heating input power(W) | 600/1000 |
| Fire extinguishing device | PERFLUORO |
| Cabinet color | RAL 7035 |
| Communication | RS485/CAN/RS232 |
| Ingress Protection Rating | IP54 |
| Relative Humidity | ≤95%rh No condensation |
| Humidity of storage environment | ≤95%rh No condensation |
| Max. Operating Altitude (m) | ≤3000m |
| Storage Temperature | ≤25℃，12 months；≤35℃，6 months；≤45℃，3 months |
5+2 Years
- Voltage:
- 278.4~345.6
- Ampere-hour:
- 160
- Warranty:
- 5+2 Years
