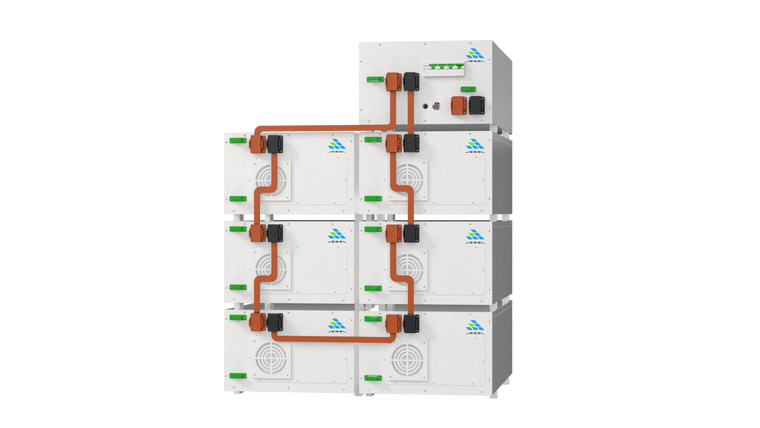

JEBEL 51-102KWH High Voltage Rack Battery System

JEBEL 51-102KWH High Voltage Rack Battery System

Jebel
SKU:
JBL-B-HV-(51-102)K-R

Coming Q1 2026

Log in for pricing

Weight:
0.00 KGS
Current Stock:
Description

JEBEL 51-102 KWH High Voltage Rack Battery System

DOWNLOAD DATASHEET

Key Features

  • Scalable Design

  • High Capacity



  • APP Monitoring

  • Safe & Reliable

  • Long Service Life

  • Technical Support

Technical Specifications

Model JBL-B-HV-10K-M
Number of Modules 5 6 7 8 9 10
Capacity (Kwh) 51.2 61.44 71.68 81.92 92.16 10.24
Nominal Voltage (V)

256

307.2

358.4

409.6

460.8

512
Operating Voltage Range (V)
232-288 278.4-345.6 324.8-403.2 371.2-460.8 417.6-518.4 464-576
Dimension (H*W*D mm) 832.5/841/623 1110/841/623 1110/841/623 1387.5/841/623 1387.5/841/623 1665/841/623
Weight（KG） 444 528 612 696 780 864
Cell Type LFP
Max.Charge /Discharge Current (A) 105/120
Continuous Charging/Discharging
Current (A)
 100/110
Operating Temperature Range（℃） 0-55
Temperature.Control natural cooling
Communication Port CAN
Ingress Protection Rating  IP20
Installation Stacked floor-mounted indoor installation
Relative Humidity ≤95%rh No condensation
Humidity of storage environment ≤95%rh No condensation
Max. Operating Altitude ≤3000m
Storage Temperature ≤25℃，12 months；≤35℃，6 months；≤45℃，3 months
Certification UN

Installation & Usage Guidelines

  • Mount indoors or under shelter, away from direct sunlight or water exposure.

  • Allow airflow around the unit for passive cooling.

  • Compatible with HV hybrid  supporting CAN communication.

  • Ensure secure wall anchoring and proper grounding.

  • Expand capacity by connecting additional units in parallel for larger systems.

Warranty
5+2 Years
Additional Information
Voltage:
153.6-864
Ampere-hour:
200
Warranty:
5+2 Years
