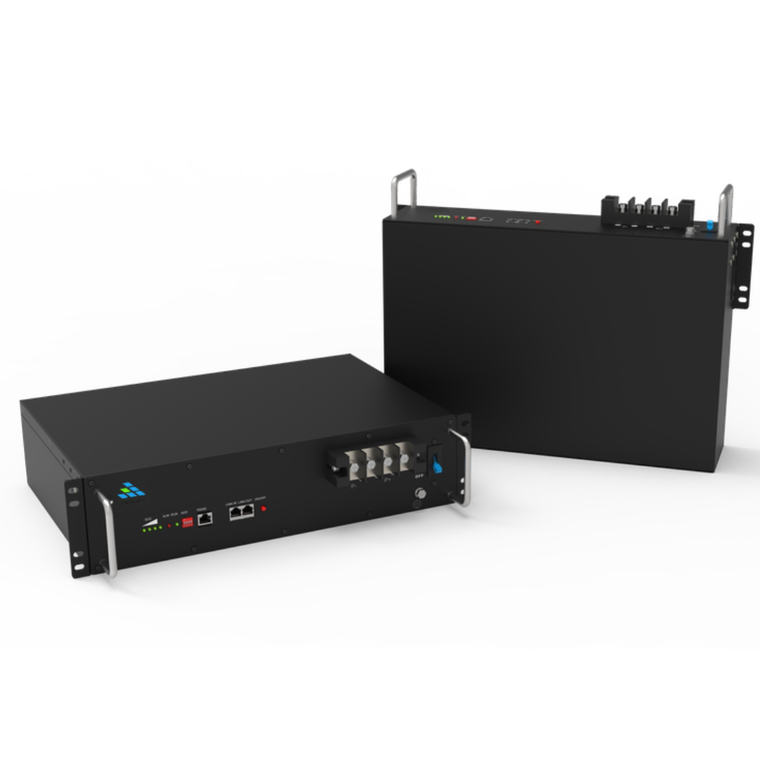

JEBEL 2.56kwh Rack Mount Lithium Battery (25.6Volt, 100Ah)

JEBEL 2.56kwh Rack Mount Lithium Battery (25.6Volt, 100Ah)

Jebel
SKU:
JBL-B-2.5K-R

Log in for pricing

Weight:
44.00 KGS
Current Stock:
Description

Jebel 2.56kwh Home Energy Storage System

DOWNLOAD DATASHEET



Key Features

  • SAFETY

  1. Long life type prismatic LiFePO4 cells, suitable for energy storage application.
  2. Low voltage system, safety for application.
  3. Cell certification: UN38.3, ROHS, IEC62619,UL1973.
  4. Battery certification: UN38.3, MSDS, CE
  • DESIGN
  1. Standard 19" rack design.
  2. Flexible and easily installation, rack or wall mounted.
  3. -20~+55°C widely temperature range.
  4. Maintenance free.
  • SCALABILITY
  1. Parallel support for more energy.
  2. Optional: Heater-200W.
  3. DC Breaker-125A 1P
  • BATTERY MANAGEMENT SYSTEM
  1. Independent protection for charge and discharge.
  2. SOC, Alarm, Run display and PC software for detailed operation.
  3. OVP, LVP, OCP, OTP, LTP protection.
  4. Rs485 communication port for inverter (SMK) and Link in& out for battery to battery communication.

Technical Specifications

Parameter Value
Model JBL-B-2.5K-R
Nominal Voltage [V] 25.6
Nominal Capacity [Ah] 100
Total Energy [Wh] 2560
Dimension (W*D*H, mm) 442*300*110
Weight [Kg] 23
Max. Charging Current [A] 100
Max. Discharging Current [A] 100
Pulse Discharge Current 120A @2S
Charging Voltage [V] 27.6~28.8
End of Dicharge Voltage [V] 22.4 (Backup Application) / 24 (Cycle Application)
Operation Humidity 0~95% RH (No condensing)
Operating Temperature Range Standard Product: Charge: 0 ~ +55°C; Discharge: -20 ~ +55°C
With Optional Heater: Charge / Discharge: -30 ~ +55°C
Cycle Life >6000
Designed Calendar Life 10 Years
Communication interface For inverter : RS485
For battery to battery: LINK-IN,
LINK-OUT
Protection Over voltage , Low voltage, Over current,
Over Temperature, Low Temperature, Short circuit
Parallel Support Yes, Max. 15 Sets
Series Support Not support



Warranty
5+2 Years
Additional Information
Voltage:
25.6
Ampere-hour:
100
Warranty:
5+2 Years
