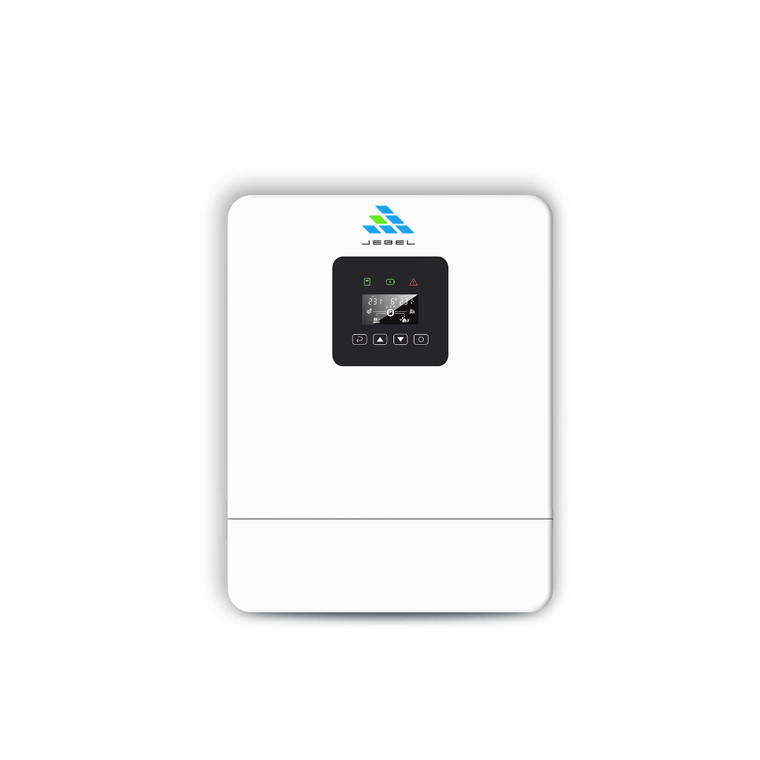

JEBEL 6KW Single Phase ECO Hybrid Inverter

JEBEL 6KW Single Phase ECO Hybrid Inverter

Jebel
SKU:
JBL-OFF-6K-1PL

Log in for pricing

Weight:
0.00 KGS
Current Stock:
Description

DOWNLOAD DATASHEET

Jebel JBL-OFF-6K-1PL , also called single phase low-voltage eco hybrid solar inverters, apply to solar system with participation of PV, battery, loads and grid system for energy management. The energy produced by PV system shall be used to optimize self-consumption, excess power charge battery and the rest power could be exported to the grid. Battery shall discharge to support loads when PV power is insufficient to meet self-consumption. If battery power is not sufficient, the system will take power from grid to support loads.

Key Features

  • Excellent Performance
    200% PV oversizing, 150% PV usable power
    Max. 36A PV inuput current for high-power solar panels
    Max. battery charge/discharge current of 140A/160A
    Max. 11.5kW utility input power



  • High Flexibility
    Support  Lead-acid battery
    Independent generator port
    Dual output with smart load
    Up to 12 pcs in parallel, support 3-phase parallel system（Only 6K model）



  • Safety and Reliability
    IP54 protection rating
    Multiple built-in protections，DC/AC Type III SPD
    3 year Warranty



  • Intelligent Function
    USB OTG function
    Time-Based battery charging/discharging
    Built-in Wi-Fi and bluetooth for local and remote monitoring



Technical Specifications

Models

6K

Efficiency
Max. Efficiency 95%

PV Input
Max. PV Usable Power 9,000W
Max. PV Input Voltage 500V
MPPT Operating Voltage Range 60V-450V
Start-up Voltage 60V
No. of MPP Trackers 1
No. of Strings per MPP Tracker 1
Max. Input Current Per MPPT 18A

Battery

Battery Type Lithium-ion/Lead-acid
Nominal Battery Voltage 48V
Battery Voltage Range 40-60V
Max. Solar Charging Current 140A
Max. AC Charging Current 140A
Max. Charging/Discharging Current 140A/160A

AC Input
Max. Grid Input Power 11,500W
Max. Input Current 50A
Nominal Voltage 220V/230V/240V, L+N+PE
Grid Voltage Range 170V-280V (For UPS), 90V-280V(For Home Appliances)
Nominal Frequency 50Hz/60Hz

AC Output
Nominal AC Output Power 6,000W/6,000VA
Nominal Voltage 220V/230V/240V, L+N+PE
Nominal AC Output Current 27.3A/26A/25A
Nominal Frequency 50Hz/60 Hz
Max. Grid Passthrough Power  (grid to load) 9,000W
Peak Output Apparent Power 200% @ 5.5s
THDV ＜3% @ R Load
Parallel Capacity 12 PCS
Transfer Time 10ms Typical (For UPS)
20ms Typical (For Home Appliances)
50ms Typical(For Parallel Operation)

Protection
Ingress Protection Degree IP54
Overvoltage Protection Yes
Overload Protection Yes
AC Short Circuit Protection Yes
Over Temperature Protection Yes
Surge Protection DC: Type III, AC: Type III

General
Communication Interfaces USB(OTG), RJ45(for BMS,CAN/RS485),RJ45(for Parallel), Dry-Contact, WIFI/LAN(Optional)
Operation Temperature Range -10°C~55°C
Relative Humidity 5%~95%
Max. Operating Altitude 4,000m, (>2,000m derating)
Cooling Method Smart Cooling
Display LED+LCD
Mounting Wall Bracket
Dimensions (W*H*D) 347mm*445mm*120mm
Certification EN/IEC62109-1, EN/IEC62109-2,EN/IEC 61000
Warranty
 3 Years
Warranty
Additional Information
single or three-phase:
single-phase
Frequency:
50
Voltage:
220
Battery Voltage:
48
