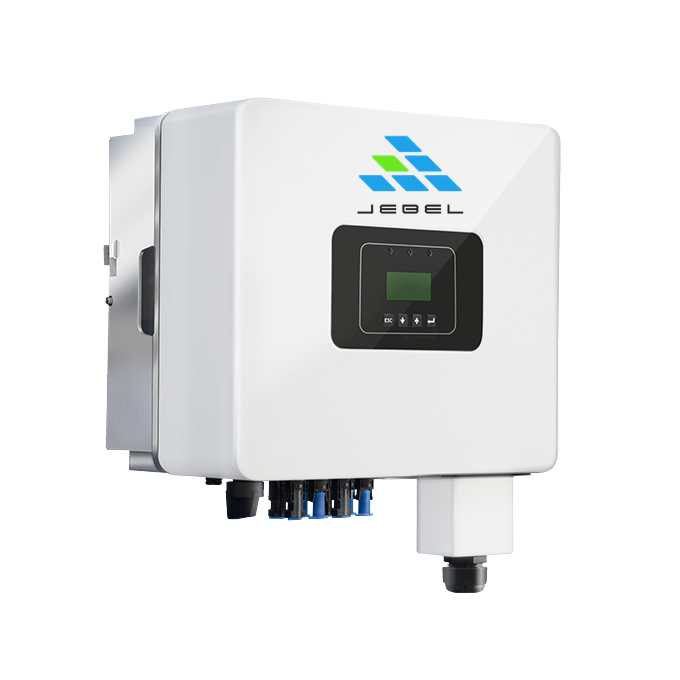

Jebel 25KW Three Phase String Inverter
Built for three-phase residential and small commercial projects JBL-ON-25K-3P . It not only has a small size and high yield, but also has intelligent air-cooling technology, which means more accurate cooling and heat dissipation.
Features:
- OLED display, touch button design, simple operation
- Maximum efficiency 98.5%, more power generation
- 30A string current, suitable for high power modules
- 130% DC configuration, 110% AC overload output
- Wide PV voltage range
- IP65 protection level, built-in SPD protection device
- Intelligent remote monitoring
- Support anti-backflow function
- Support AFCI function
Datasheet:
|
Model |
25K |
30K |
|
Input DC |
||
|
Max. PV access power |
50kW |
60kW |
|
Max. PV input power |
32.5kW |
39kW |
|
Max. PV input voltage |
1100V |
|
|
Operation voltage range |
200V-1000V | |
|
Number of independent |
2/2+2 | 2/3+2 |
|
MPPT max. current |
30A/30A |
42A/30A |
| AC Output Data |
||
|
Rated output power |
25kW |
30kW |
|
Max. output power |
27.5kW |
33kW |
|
Rated output voltage |
400V/320V-480V |
|
|
Rated output frequency |
50Hz/60Hz |
|
|
Rated output current |
36A |
43.5A |
|
Max. output current |
40A |
48A |
|
Power factor |
-0.8~+0.8(adjustable) |
|
|
THDi |
<3%(Nominal Output) |
|
|
Grid system pattern |
3W+N+PE |
|
| Efficiency |
||
|
Max. efficiency |
98.5% |
|
|
Europe efficiency |
98.2% |
|
| Protection |
||
|
Input DC switch |
Yes |
|
|
Input over current protection |
Yes |
|
|
DC reverse polarity protection |
Yes |
|
|
Output over voltage protection |
Yes | |
|
Output over current protection |
Yes | |
|
Anti islanding protection |
Yes |
|
| AC surge protection |
Yes |
|
| DC surge protection |
Yes |
|
| Insulation impedance protection |
Yes |
|
|
RCD detection |
Yes |
|
|
General Data |
||
|
Dimensions (L/W/H) in mm |
403/236/360 |
|
|
Weight |
22kg |
|
|
Noise |
<30dB |
|
|
Operation temperature range |
-25℃~+60℃ | |
|
Heat dissipation mode |
Smart cooling |
|
|
IP Class |
IP65 |
|
|
Maximum altitude |
4000m |
|
|
Self-Consumption night |
<1w |
|
|
Topology |
Transformerless |
|
|
Features |
||
|
LCD display |
Yes |
|
|
Communication interface |
WIFI/4G/GPRS/RS485(optional) |
|
|
Warranty |
5 years (standard) |
|
|
Standards |
IEC 61683, IEC 61727, IEC 62116, IEC 60068, EN 62109, IEC 61000, EN 50549, NB/T32004 |
|
5 Years
- single or three-phase:
- three-phase
- Frequency:
- 50
- Voltage:
- 380
