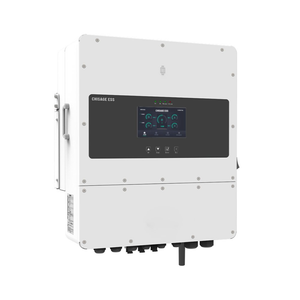

Chisag ESS 14kW Three Phase LV Hybrid Inverter

Chisag ESS 14kW Three Phase LV Hybrid Inverter

Chisage ESS
SKU:
MARS-14G1-LE

Log in for pricing

Weight:
48.00 KGS
Width:
55.00 (cm)
Height:
70.00 (cm)
Depth:
35.00 (cm)
Current Stock:
Description

DOWNLOAD DATASHEET

Key Features

  • 5-14kW Rated AC Output Power
  • ARC fault detection optional
  • Support storing energy from diesel generator
  • Support on/off grid mode switch, EPS output
  • 20 PCS inverters parallel for off-grid operation
  • Independent AC input port for diesel generator
  • Colorful 7-inch touch LCD, IP65 protection degree
  • Support different power inverters parallel connection
  • Support battery charging/discharging according to the time setting
  • 100% unbalanced output, each phase max. output up to 5kW
  •



Technical Specifications

Model

Mars-5G1-LE

Mars-5G2-LE

Mars-6G1-LE

Mars-6G2-LE

Mars-8G1-LE

Mars-8G2-LE

Mars-10G1-LE

Mars-10G2-LE

Mars-12G1-LE

Mars-12G2-LE

Mars-14G1-LE

Mars-14G2-LE
Battery Input Data
Battery Type Lead-acid or Li-ion
Battery Voltage Range (V) 40-60
Max. Charge Current (A) 120 130 200 220 250 280
Max. Discharge Current (A) 120 130 200 220 250 280
Charging Curve 3 Stages/Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-Adaption to BMS
PV String Input Data
Max. DC Input Power (W) 7,500 9,000 12,000 15,000 18,000 20,000
PV Input Voltage (V) 650(160~800)
MPPT Range (V) 200~700
Full Load DC Voltage Range (V) 260~650
Start-up Voltage (V) 160
PV Input Current (A) 26+17
Max. PV ISC (A) 34+20
No. of MPPT Trackers 2
No. of String Per MPPT Tracker 2/1 2/1 2/1 2/1 2/1 2/1
AC Output Data
Rated AC Output Power and UPS Power (W) 5,000 6,000 8,000 10,000 12,000 14,000
Max. AC Output Power (W) 5,500 6,600 8,800 11,000 13,200 15,400
Peak Power(off grid) 2 times of rated power, 10s 18000W, 10s
AC Output Rated Current (A) 7.3 8.7 11.6 14.5 17.4 20.3
Max. AC Current (A) 10.8 13 17.4 21.7 26 26
Max. Continuous AC Passthrough (A) 26 26 26 26 26 26
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz, 230/400Vac(Triple phase)
Grid Type Three phase
Current Harmonic Distortion THD<3%(Linear load <1.5%)
Efficiency
Max. Efficiency 97.90%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV ARC Fault Detection Optional
Output Over Voltage Protection DC Type II/AC Type III
Certification and Standards

Safety Regulation IEC/EN62109-1, IEC/EN62109-2
EMC IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range(℃) -45~60, >45 Derating
Cooling Smart cooling
Noise(dB) ≤45
Communication with BMS CAN, RS485
Weight (kg) 38 40 42 42 44 45
Dimensions (mm) G1:510W×630H×290D/G2:550W×730H×290D
Protection Degree IP65
Installation Style Wall-mounted
Warranty
5 Years
Additional Information
single or three-phase:
three-phase
Frequency:
50
Voltage:
380
Battery Voltage:
48
