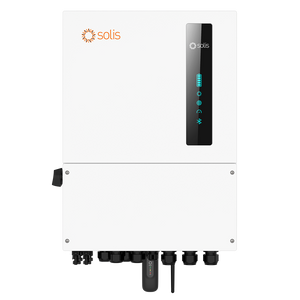

Solis 8KW Three Phase LV Hybrid Inverter

Solis 8KW Three Phase LV Hybrid Inverter

Solis
SKU:
S6-EH3P8K02-NV-YD-L
Availability:
4-6 weeks

Log in for pricing

Weight:
52.00 KGS
Width:
58.00 (cm)
Height:
81.00 (cm)
Depth:
45.00 (cm)
Current Stock:
Minimum Purchase:
1 unit

Leading Features:

•  Generator-compatible to extend backup duration during grid power outage

•  Multiple inverters can operate together to form a microgrid

•  Supports dual backup ports for intelligent control of critical and non-critical loads

•  10 seconds of 200% overload capability

•  Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand

•  Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations

•  The battery's DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems

•  Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port

DOWNLOAD DATASHEET
DOWNLOAD MANUAL
COMPATIBILITY LIST
Description

S6-EH3P(8-15)K02-NV-YD-L series three-phase hybrid inverter is suitable for large residential PV energy storage systems with low battery voltage (48V). The products are compatible with high power PV panels, and suitable for a variety of brands' lithium and lead-acid batteries. In addition, the product has a wealth of features, including compatible generators, UPS level switching, grid-tied PV system coupling networking, supporting three-phase unbalanced load and half-wave load, etc. Helps households easily achieve zero carbon energy needs.

Technical Specifications

Models

8K

10K

12K

15K

Input DC (PV side)

Max. usable PV input power

12.8kW

16 kW

19.2 kW

24 kW

Max. input voltage

1000 V

Rated voltage

550 V

Start-up voltage

160 V

MPPT voltage range

2000-850 V

Max. input current

20 A / 40 A

40 A / 40 A

Max. short circuit current

30 A / 50 A

50 A / 50 A

MPPT number/Max. input strings number

2/3

2/4

Battery

Battery Type

Li-ion

Battery Voltage Range

40 - 60 V

Max. Charge / Discharge Current

180 A

220 A

250 A

290 A

Communication

CAN/RS485

Output AC (Grid side)

Rated output power

8 kW

10 kW

12 kW

15 kW

Max. apparent output power

8 kVA

10 kVA

12 kVA

15 kVA

Operation phase

3/N/PE

Rated grid voltage

380 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

Max. output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Input AC (Grid side)

Input voltage range

323-460 V

Max. input current

18.3 A / 17.3 A

22.8 A / 21.7 A

27.3 A / 26.0 A

34.2 A / 32.5 A

Frequency range

50 Hz / 55-5 Hz

Input Generator

Max. input power

8 kW

10 kW

12 kW

15 kW

Max. input current

12.2 A

15.2 A

18.2 A

22.8 A

Rated input voltage

3/N/PE, 380 V / 400 V

Rated input frequency

50 Hz / 60 Hz

Output AC (Back-up)

Rated Output Power

8 kW

10 kW

12 kW

15 kW

Max. apparent output power

2 times of rated power, 10 s

Back-up switch time

<10 ms

Rated output voltage

3/N/PE, 380 V / 400 V

Rated Frequency

50 Hz / 60 Hz

Rated output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

Max. Continuous output current

12.2 A

15.2 A

18.2 A

22.8 A

Max. Continuous AC Passthrough Current

50A

THDv (@linear load)

<2%

Efficiency

Max. efficiency

97.6%

EU efficiency

97.0%

Protection

Anti-islanding protection

Yes

Output over current protection

Yes

Short circuit protection

Yes

DC reverse-polarity protection

Yes

Surge protection

97.6

General Data

Dimensions (W*H*D)

430*660*295 mm

Weight

42 kg

Topology

Non-isolated

Operating ambient temperature range

-40 ~ +60°C

Ingress protection

IP66

Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude

4000 m

Grid connection standard

NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, Sri Lanka, EN 50438L, Vietnam, PEA/MEA

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3

Features

DC connection

MC4 Quick connection plug (PV) & Screw terminal (Battery)

AC connection

Screw terminal

Display

LCD + Bluetooth + APP

Communication

CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN



Warranty
10 years
Additional Information
single or three-phase:
three-phase
Frequency:
50
Voltage:
380
Battery Voltage:
48
