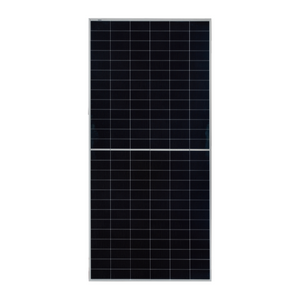

Ulica 580 Watt Double Glass Bi-facial N-Type Solar Panel

Ulica 580 Watt Double Glass Bi-facial N-Type Solar Panel

Ulica Solar
SKU:
UL-580M-144ADGN
Availability:
4-6 weeks

Contact us for pricing

Log in for pricing

Weight:
30.60 KGS
Width:
113.40 (cm)
Height:
227.80 (cm)
Depth:
3.00 (cm)
Current Stock:
Description

Electrical Specification

MODEL TYPE

UL-575M-144ADGN

UL-580M-144ADGN

UL-585M-144ADGN

UL-590M-144ADGN



STC*

NOCT*

STC*

NOCT*

STC*

NOCT*

STC*

NOCT*

Maximum Power (Pmax)

W

 575 436 580 440 585 443 590 447

Maximum Power Voltage (Vmp)

V

 43.85 40.34 44.02 40.50 44.17 40.64 44.35 40.80

Maximum Power Current (Imp)

A

 13.11 10.80 13.18 10.85 13.24 10.91 13.30 10.96

Open-circuit Voltage (Voc)

V

 52.32 47.61 52.52 47.79 52.72 47.98 52.92 48.16

Short-circuit Current (Isc)

A

 13.89 11.20 13.95 11.25 14.02 11.30 14.06 11.34

Module Efficiency STC

%

 22.26 22.45 22.65 22.84

Operating Temperature

-40 °C - 85 °C

Maximum System Voltage

DC1500V (IEC)

Maximum Series Fuse Rating

30A

Power Tolerance

0-+5 Watt

Temperature coefficients of Pmax

-0.29%/ °C

Temperature coefficients of Voc

-0.25%/ °C

Temperature coefficients of Isc

0.046%/ °C

Nominal Operating Cell Temperature (NOCT)

43±2°C

*STC : Cell Temperature : 25°C, Irradiance : 1000 W/m2 , Air mass : 1.5G

*NOTC : Air Temperature : 20°C, Irradiance : 800 W/m2 , Air mass : 1.5G, Wind speed : 1m/s

Specifications

Cell Type

N Type Mono-crystalline

No. of cells

144 (6X12X2)

Dimensions

227.8*1134*30mm

Weight

30.6kg

Glass

2.0mm+2.0mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass

Junction Box

IP68,3diodes

Connector

MC4 Compatible

Cable Length (Including connector)

4mm2

Portrait : (+) 400mm/(-)200mm

Landscape : (+) 1400mm/(-)1400mm

Packaging Configurations

Two Box= One Pallet

36pcs/box,72pcs/pallet,720pcs/40HQ container

Electrical Characteristics with different rear side power gain (reference to 450W front)

Pmax/W

Voc/V

Isc/A

Vmp/V

Imp/A

Pmax gain
575 52.32 13.89 43.85 13.11

0
604 52.32 14.58 43.85 13.77

5%
633 52.32 15.28 43.85 14.42

10%
661 52.32 15.97 43.85 15.08

15%
690 52.32 16.67 43.85 15.74

20%
719 52.32 17.36 43.85 16.39

25%
748 52.32 18.06 43.85 17.05

30%



Warranty
15-year product warranty 30-year linear power output
Additional Information
Mono or Bi-Facial:
Bi-Facial
N-Type or P-Type:
N-Type
Peak Power Watts:
580
