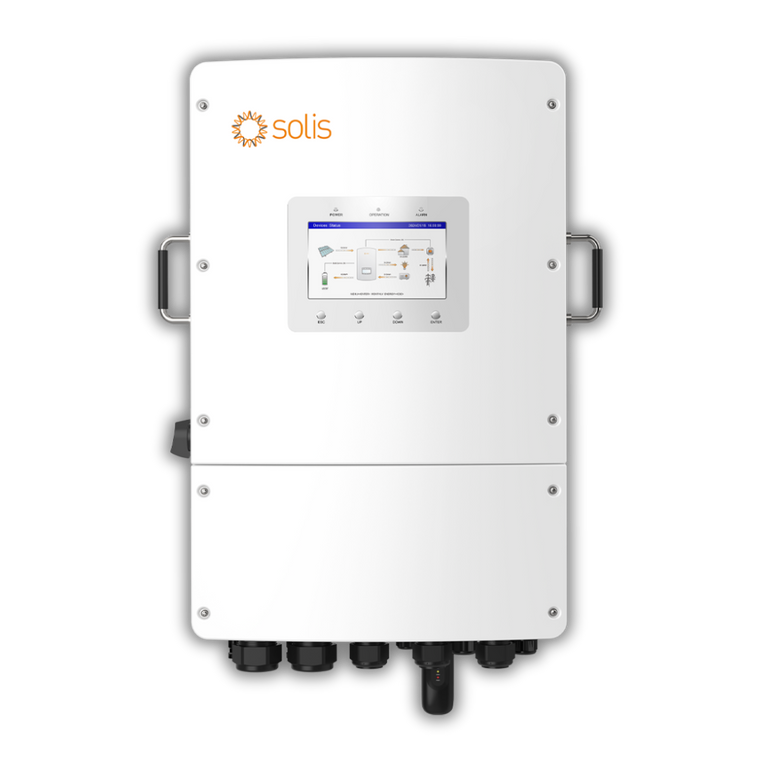

Solis 18KW Three Phase LV Hybrid Inverter

Models

8K

10K

12K

15K

18K

Input DC (PV side)

Max. usable PV input power

12.8kW

16 kW

19.2 kW

24 kW

28.8 kW

Max. input voltage

1000 V

Rated voltage

550 V

Start-up voltage

160 V

MPPT voltage range

200-850 V

Max. input current

20 A / 40 A

40 A / 40 A

42 A / 42A

Max. short circuit current

30 A / 50 A

50 A / 50 A

50 A / 50 A

MPPT number/Max. input strings number

2/3

2/4

Battery

Battery Type

Li-ion / Lead-acid

Battery Voltage Range

40 - 60 V

Max. Charge / Discharge Current

180 A

220 A

250 A

290 A

320 A

Number of battery ports

2

Max. charge / discharge current of each port

175 A

Communication

CAN/RS485

Output AC (Grid side)

Rated output power

8 kW

10 kW

12 kW

15 kW

18 kW

Max. apparent output power

8 kVA

10 kVA

12 kVA

15 kVA

18 kVA

Rated grid voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

27.3 A / 26.1 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Input AC (Grid side)

Max. input current

18.3 A / 17.3 A

22.8 A / 21.7 A

27.3 A / 26.0 A

34.2 A / 32.5 A

41 A / 39.2 A

Input Generator

Max. input power

8 kW

10 kW

12 kW

15 kW

18 kW

Max. input current

12.2 A

15.2 A

18.2 A

22.8 A

27.3 A / 26.1 A

Rated input voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated input frequency

50 Hz / 60 Hz

Output AC (Back-up)

Rated Output Power

8 kW

10 kW

12 kW

15 kW

18 kW

Max. apparent output power

2 times of rated power, 10 s

Back-up switch time

<10 ms

Rated output voltage

3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Rated Frequency

50 Hz / 60 Hz

Rated output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

27.3 A / 26.1 A

Max. Continuous output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

27.3 A / 26.1 A

Max. Continuous AC Passthrough Current

50A

THDv (@linear load)

<3%

Efficiency

Max. efficiency

97.5%

EU efficiency

96.4%

BAT charged by PV / AC max. efficiency

95.0% / 94.4%

BAT discharged to AC max. efficiency

94.5%

Protection

Anti-islanding protection

Yes

Output over current protection

Yes

Short circuit protection

Yes

DC reverse-polarity protection

Yes

Surge protection

DC Type II / AC Type II (Optional)

Protection class / Over voltage category

I / II (PV and BAT), III (MAINS and BACKUP and GEN)

Integrated AFCI 2.0

Optional

Integrated DC switch

Yes

General Data

Max. power per phase

40% rated power

Dimensions (W*H*D)

430 × 660 × 305 mm

Weight

42 kg

Topology

Non-isolated

< 30 W

Operating ambient temperature range

-25 ~ +60°C

Ingress protection

IP66

Cooling concept

Intelligent fan-cooling

Max. operation altitude

4000 m

Grid connection standard

EN 50549-1/-10, VDE 4105&VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727,
IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Features

DC connection

MC4 Quick connection plug (PV) & Screw terminal (Battery)

AC connection

Screw terminal

Display

7.0" LCD display & Bluetooth + APP

Communication

CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
