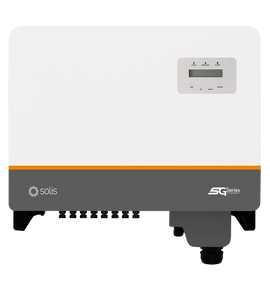

Solis 25KW Three Phase String Inverter

Solis
SKU:
S5-GC25K
Availability:
4-6 weeks

Log in for pricing

Weight:
45.00 KGS
Width:
63.30 (cm)
Height:
73.00 (cm)
Depth:
35.00 (cm)
Current Stock:
Minimum Purchase:
1 unit

Download Datasheet

DOWNLOAD DATASHEET

Solis 25KWthreephasethreeMPPT,withDCswitch

Features:

Efficient
     - Max. efficiency 98.8%
     - String current up to 16A
     - 3/4 MPPT design, supports multiple orientation system design
     - Night time PID recovery function, increases overall system yield (optional)
     - Wide voltage range and low startup voltage
Smart
     - Supports export power control
     - Intelligent string monitoring, smart I-V curve scan
     - Supports RS485, WiFi, GPRS
     - Scan to register on SolisCloud, supports remote upgrade and control
Safe
     - IP66
     - AFCI protection, proactively reduces fire risk
     - Globally recognised branded componentry for longer life
     - Intelligent redundant fan-cooling
Economic
     - Supports GPRS/WiFi communication with less wiring and reduced installation costs
     - > 150% DC/AC ratio
     - Supports high power modules for lower installation costs
     - Supports aluminium wire access to reduce cost

Datasheet:

Models

25K

30K

33K

36K

40K

40K-HV

50K-HV

Input DC

Recommended max. PV power

37.5 kW 45 kW 49.5 kW

54 kW

60 kW

60 kW

75 kW

Max. input voltage

1100 V

Rated Voltage

600 V

Start-up voltage

180 V

MPPT voltage range

200-1000 V

Max. input current

32 A / 32 A / 32 A

4*32 A

Max. short circuit current

40 A / 40 A / 40 A

4*40 A

MPPT number/Max. input strings number

3/6

4/8

Output AC

Rated output power

25 kW

30 kW

33 kW

36 kW

40 kW

40 kW

50 kW

Max. apparent output power

27.5 kVA

33 kVA

36.3 kVA

39.6 kVA

44 kVA

44 kVA

55 kVA

Max. output power

27.5 kW

33 kW

36.3 kW

39.6 kW

44 kW

44 kW

55 kW

Rated grid voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

3/PE, 480 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

38.0 A / 36.1 A

45.6 A / 43.3 A

50.1 A /47.6 A

54.7 A / 52.0 A

60.8 A / 57.7 A

48.1 A

60.1 A

Max. output current

41.8 A

50.2 A

55.1 A

60.2 A

66.9 A

53.0 A

66.2 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Efficiency

Max. efficiency

98.5%

98.6%

98.7%

98.8%

EU efficiency

98.1%

98.2%

98.3%

98.4%

Protection

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Output over current protection

Yes

Surge protection

DC Type II / AC Type II

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

Strings monitoring

Yes

I/V Curve scanning

Yes

Integrated PID recovery

Optional

Integrated AFCI (DC arc-fault circuit protection)

Yes (1)

Integrated DC switch

Optional

General Data

Dimensions (W*H*D)

647*629*252 mm

Weight

37 kg

Topology

Transformerless

Self-consumption (night)

<1 W

Operating ambient temperature range

-25 ~ +60°C

Relative humidity

0-100%

Ingress protection

IP66

Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude

4000 m

Grid connection standard

G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /

UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Features















DC connection

MC4 connector

AC connection

OT terminal

Display

LCD

Communication

RS485, Optional: Wi-Fi, GPRS



























5 Years
single or three-phase:
three-phase
Frequency:
50
Voltage:
380
